A&E SPECIFICATIONS

• The shallow platform base shall be 16-gauge welded steel with black wrinkle powder epoxy. The base shall be of an inner platform design that mounts inside the rack frame to add a subfloor 2.25" below bottom rack space, with a 13" x 5" center opening for cable management. The base shall not increase overall rack height. Mounting hardware to shall be supplied.

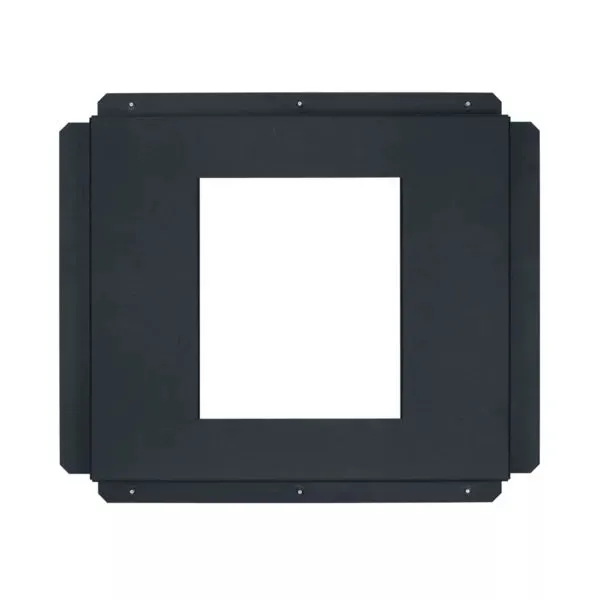

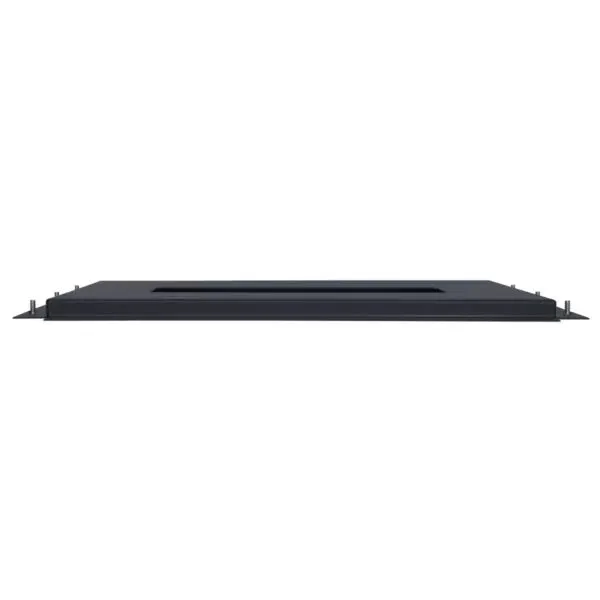

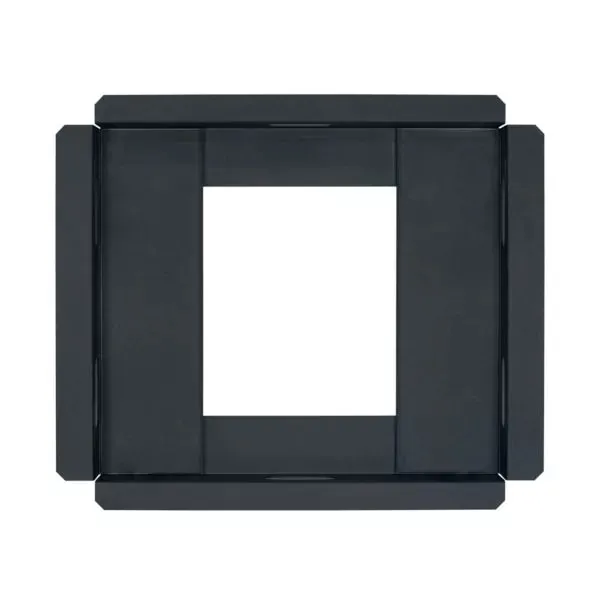

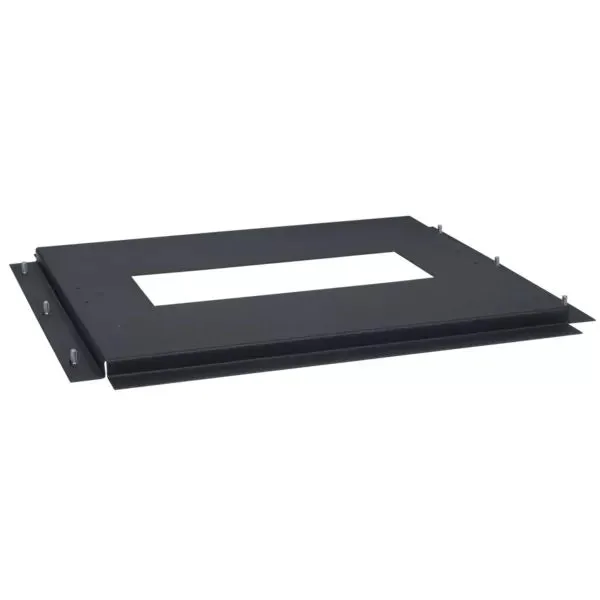

The LSSB Series shallow stationary base provides a subfloor 2.25 inches below bottom rack space, creating a convenient area to mount accessory devices on floor of the installation.

SPECIFICATIONS

• For use with LER, LFR and LGR Series racks
• Fully-welded 16-gauge steel construction
• Black wrinkle powder epoxy finish
• Center opening for cable management
• No increase to rack height
• Hardware for bolt-on installation

COMPLIANCE & CERTIFICATION

• Made in the U.S.A.
• Certified U.S. steel

TECHNICAL DOWNLOADS

• 22"D:

• 27"D:
